Specification
Product Information
Main Color:
Main Material:

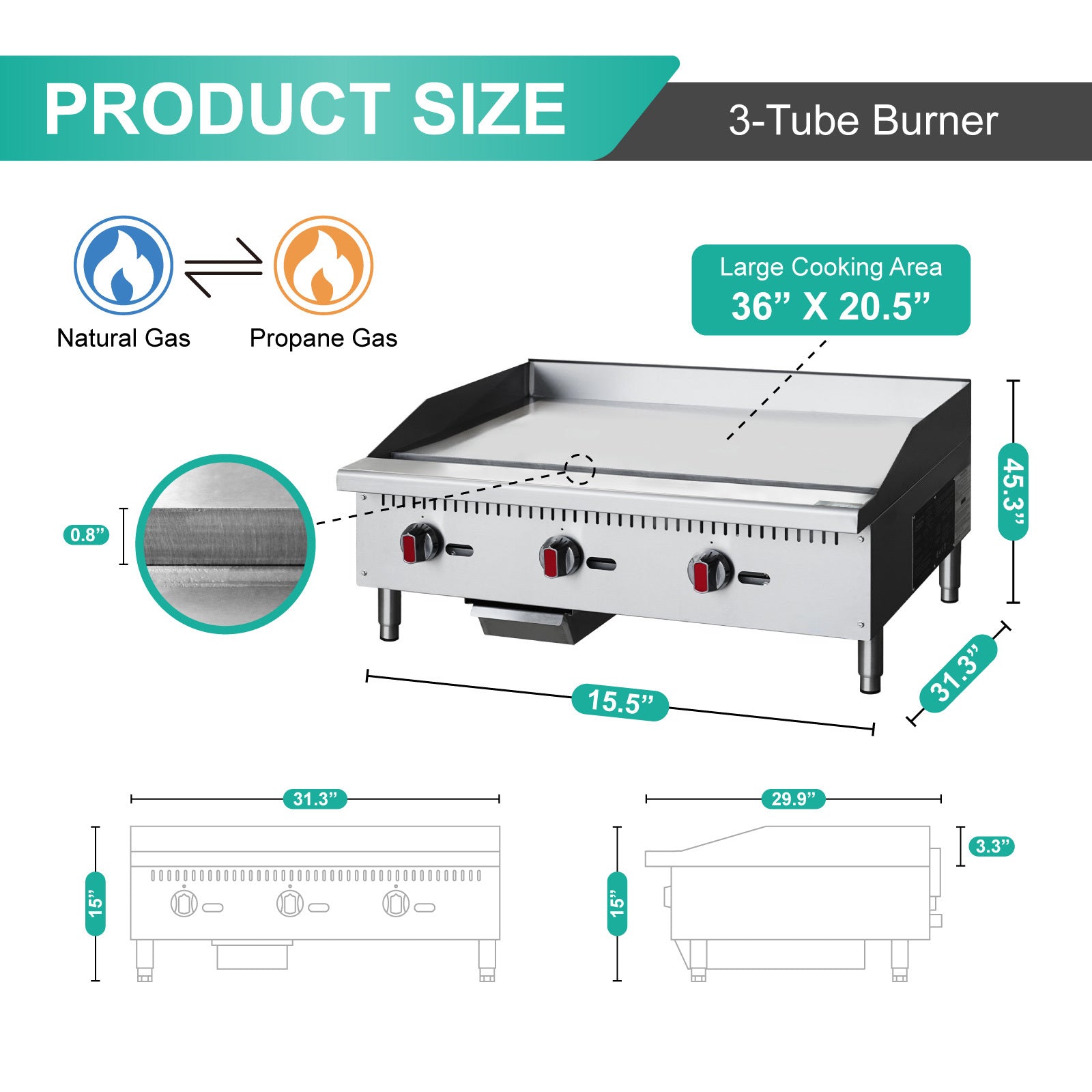

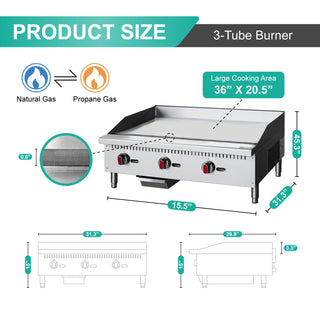

Product Dimensions
Assembled Length (in.):
Assembled Width (in.):
Assembled Height (in.):
Package Size
Length (in.):
32.94
Width (in.):
38.02
Height (in.):
19.31
Weight (lbs.):
268.95
Product Features
- This appliance is manufactured for commercial installation only, not intended for home use.3/4" NPT rear gas connections. Supply gas pressure not to exceed 14" W.C.(1/2 PSl)
- Natural gas operating pressure -4.0" W.C, Recommended supply pressure 7-9" W.C
- Propane gas operating pressure - 10.0" W.C, Recommended supply pressure 11-12" W.CA
- gas pressure regulator supplied with unit must be installed.An adequate ventilation system is required for Commercial Cooking Equipment.
- Require a 6" clearance at both side and rear adjacent to combustible construction.CSA design certified NSF listed.
Commercial Gas Appliance
Engineered for demanding commercial environments, this appliance delivers the robust performance required for high-volume food service. It is manufactured exclusively for commercial installation and is not intended for residential home use. For optimal and safe operation, an adequate ventilation system is mandatory.
- Gas Specifications: Features a 3/4" NPT rear gas connection. The supplied gas pressure must not exceed 14" W.C. (1/2 PSI).
- Natural Gas: Operating pressure of 4.0" W.C. with a recommended supply pressure of 7-9" W.C.
- Propane Gas: Operating pressure of 10.0" W.C. with a recommended supply pressure of 11-12" W.C.
- Safety & Compliance: A gas pressure regulator is supplied and must be installed. Requires a 6" clearance at both sides and the rear when adjacent to combustible construction. CSA design certified and NSF listed.
